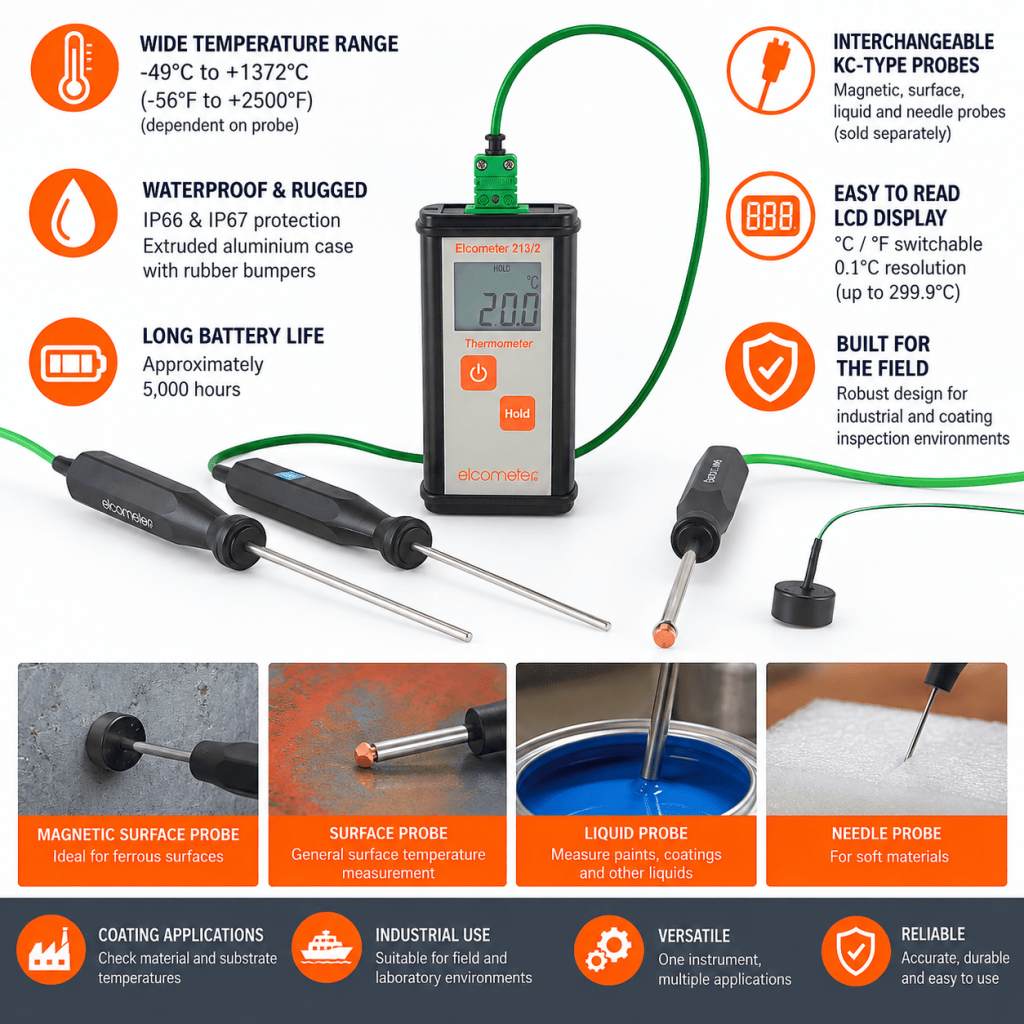

Elcometer 213/2 Digital Waterproof Thermometer
Rugged temperature measurement for surfaces, liquids, air and soft materials
This thermometer is a durable, easy-to-use instrument for measuring surface, air and liquid temperatures as well as the temperature of soft materials. Its interchangeable probe system allows inspectors to configure the thermometer for different coating inspection, industrial finishing and general temperature measurement applications.
Designed for demanding field environments, the Elcometer 213/2 combines an extruded aluminium housing with rubber bumper seals for impact resistance. The enclosure provides IP66 and IP67 protection, helping protect the instrument against water and contaminants during inspection work.
Interchangeable probes for different measurement applications
A range of K-type thermocouple probes is available separately, allowing one thermometer to perform several types of temperature measurement. Options include magnetic surface, general surface, liquid and needle probes. This versatility makes the Elcometer 213/2 useful for checking substrates, coatings, liquids and soft materials without requiring a separate thermometer for each application.
Surface temperature measurement
The optional magnetic surface probe provides convenient hands-free contact with suitable ferrous surfaces, while the general surface probe can be used where a conventional contact measurement is required.
Liquid and soft-material measurements
Dedicated liquid and needle probes extend the instrument’s use to paints, coatings and other liquids, as well as soft materials where penetration measurements are appropriate.
Wide temperature capability
The thermometer itself supports an operating measurement range of -49°C to +1372°C (-56°F to +2500°F), although the actual usable temperature range depends on the probe selected. This broad instrument range allows the Elcometer 213/2 to accommodate probes designed for very different temperature applications.
Readings can be displayed in either Celsius or Fahrenheit. Resolution is 0.1°C (0.1°F) up to 299.9°C (572°F), changing to 1°C (1°F) above 299.9°C. Measurement accuracy is specified as ±1% of the reading ±1 digit.
Built for field and industrial inspection
The easy-to-read LCD display and straightforward controls are designed for practical everyday operation. Long battery life of approximately 5,000 hours reduces the need for frequent battery replacement, while the compact 35 × 60 × 115 mm housing makes the instrument easy to carry between inspection locations.
For coating inspectors, accurate temperature measurement can help verify environmental and material conditions before and during coating application. The appropriate probe can be selected according to whether substrate, liquid, air or material temperature needs to be checked.
Key Features
- Digital thermometer for surface, air, liquid and soft-material temperature measurements
- Waterproof enclosure with IP66 and IP67 protection
- Extruded aluminium case for superior durability
- Rubber bumper seals for additional impact resistance
- Wide instrument measurement range from -49°C to +1372°C (-56°F to +2500°F), dependent on probe
- Interchangeable K-type thermocouple probes for different applications
- Magnetic surface, surface, liquid and needle probes available separately
- User-switchable °C and °F measurement units
- Easy-to-read LCD display
- Resolution down to 0.1°C (0.1°F)
- Accuracy of ±1% of the reading ±1 digit
- Approximately 5,000 hours of battery life
- Optional calibration certificate available
Specifications
| Model | Elcometer 213/2 |
|---|---|
| Part Number | G213—-2 |
| Measurement Range | -49°C to +1372°C (-56°F to +2500°F), dependent on probe used |
| Accuracy | ±1% of the reading ±1 digit |
| Resolution | 0.1°C (0.1°F) up to 299.9°C (572°F); 1°C (1°F) above 299.9°C |
| Probe Type | K-type thermocouple |
| Protection | IP66 & IP67 |
| Temperature Units | °C / °F switchable |
| Battery Life | Approximately 5,000 hours |
| Power Supply | 3 × AAA (LR03) 1.5 V batteries |
| Dimensions | 35 × 60 × 115 mm (1.4 × 2.4 × 4.5 in) |
| Weight | 194 g (0.42 lb) |
| Calibration Certificate | Available as an option |
| Included | Elcometer 213/2 Digital Waterproof Thermometer, batteries, carry case and operating instructions |
Available Temperature Probes
| Probe | Part Number | Measurement Range |
|---|---|---|
| Magnetic Surface Probe, 13 mm diameter | T99911728 | -50°C to +150°C (-58°F to +302°F) |
| Surface Probe, 130 × 4.2 mm diameter | T2136069- | -50°C to +600°C (-58°F to +1112°F) |
| Liquid Temperature Probe, 130 × 3 mm diameter | T9996390- | -200°C to +1100°C (-328°F to +2012°F) |
| Needle Probe, 130 × 3 mm diameter | T2136391- | -50°C to +400°C (-58°F to +752°F) |
Note: Temperature probes are not supplied as standard with the Elcometer 213/2 and should be selected separately according to the intended application.
Q&A
Does the Elcometer 213/2 include a temperature probe?
No. The thermometer is supplied without a measurement probe. Magnetic surface, general surface, liquid and needle probes are available separately, allowing the appropriate probe to be selected for the application.
Can the same Elcometer 213/2 measure both surface and liquid temperature?
Yes. The instrument accepts interchangeable K-type thermocouple probes. A surface probe can be used for contact measurements on substrates, while the dedicated liquid probe can be used for paints, coatings and other liquids.
Can it measure up to 1372°C with every probe?
No. The -49°C to +1372°C range is the capability of the thermometer itself. Each interchangeable probe has its own temperature range, so the maximum usable temperature depends on the probe selected.
Which probe is best for checking steel surface temperature?
The magnetic surface probe is particularly convenient on suitable ferrous substrates because it can remain attached to the surface during measurement. A general surface probe is also available when magnetic attachment is not appropriate.
