Digital Laser Infrared Thermometer | Elcometer 214

$334.21 CAD



• Non-contact technology with laser spot indicator
• Fast, 1 second scanning of any surface
• Measure objects as small as 25mm (1”)
• Distance-to-Target Ratio of 8:1

The Elcometer 214 Digital Laser Thermometer is a simple, easy-to-use, non-contact thermometer that safely and accurately measures the surface temperature of non-reflective materials using infrared technology

This Digital Laser Thermometer has a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

High accuracy Laser Thermometer

  1. Non-contact technology with laser spot indicator
  2. ºC / ºF user switchable
  3. Fast, 1-second scanning of any surface
  4. Measure objects as small as 1″ (25mm)
  5. Distance-to-Target Ratio of 8:1
  6. Easy to read LCD display

The Elcometer 214 Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

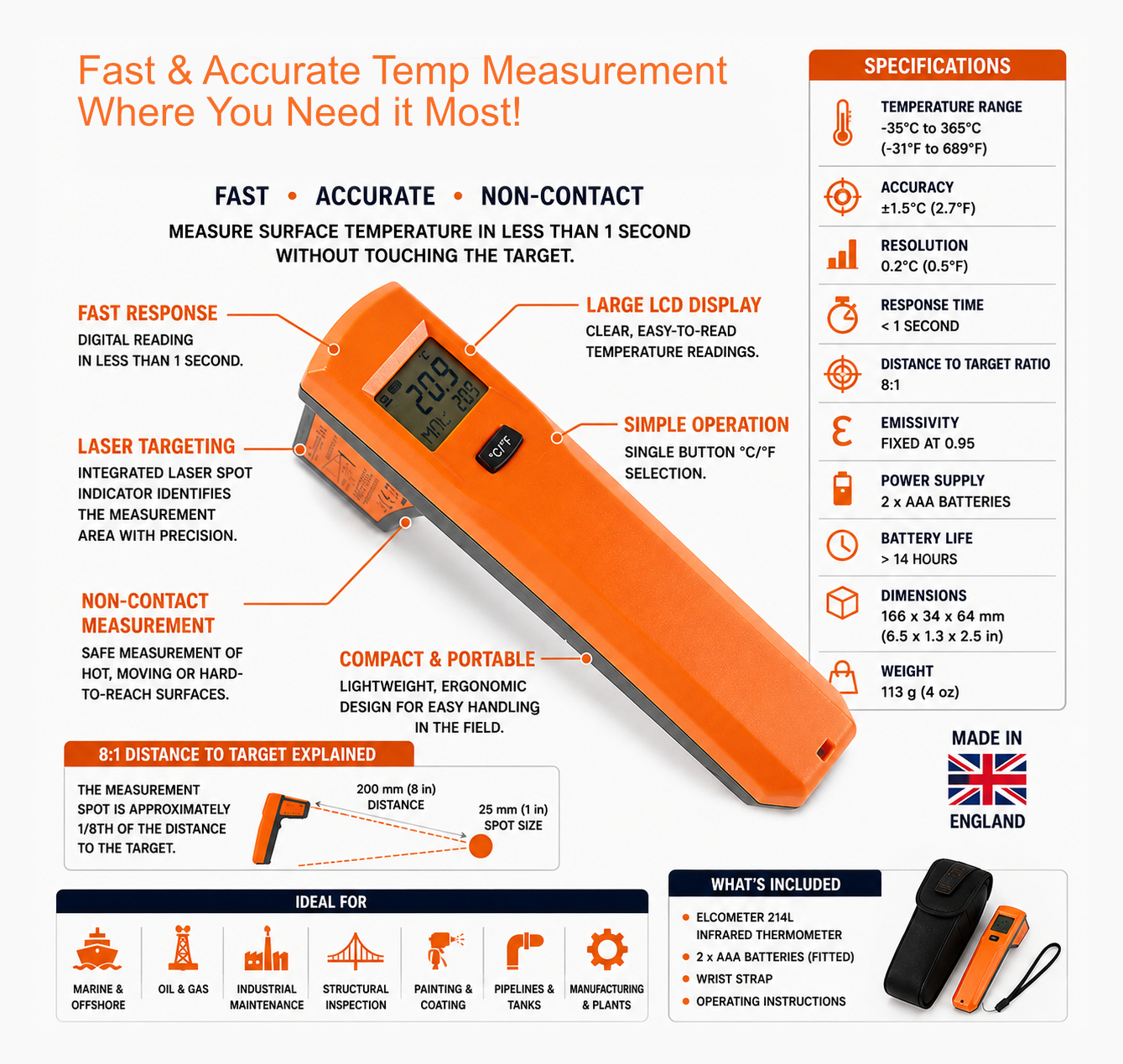

As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm (8″) for example, the diameter of the measured area is 25mm (1″).

6.5 x 1.3 x 2.5″ (166 x 34 x 64mm)

Distance-to-Target Ratio The Elcometer 214 Infrared Digital Laser Thermometer has a distance-totarget ratio (D/T) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

Elcometer 214 testcoatings.ca









For example, if the distance from the sensor optics to the target is 200mm (8″), the diameter of the measured area is 25mm (1″), the minimum target area for the Elcometer 214.



Technical specifications

Measuring Range -35°C to 365°C (-31 to 689°F)
Ambient Temperature 32 to 122°F (0 to 50°C)
Resolution 0.5°F (0.2°C)
Accuracy 2.7°F (±1.5°C)
Distance-To-Target 8:1, 25mm (1″) spot size
Emissivity Fixed at 0.95
Response Time 1 second
Battery Type 2 x LR03 (AAA)
Battery Life 14+ hours continuous use
Dimensions
Weight 3.98oz (113g)
Packing List
  • Elcometer 214 Infrared Digital Laser Thermometer
  • 2 x AAA batteries (fitted)
  • wrist strap
  • operating instructions

Download Data Sheet

Download Instruction Manual
