Elcometer 108 Push-Off Adhesion Tester

$4,321.07 CAD$4,747.25 CAD

• Maximum hold – displays the highest value reached
• Backlit display for dark areas
• Rubber protective casing
• Switchable Metric/Imperial units

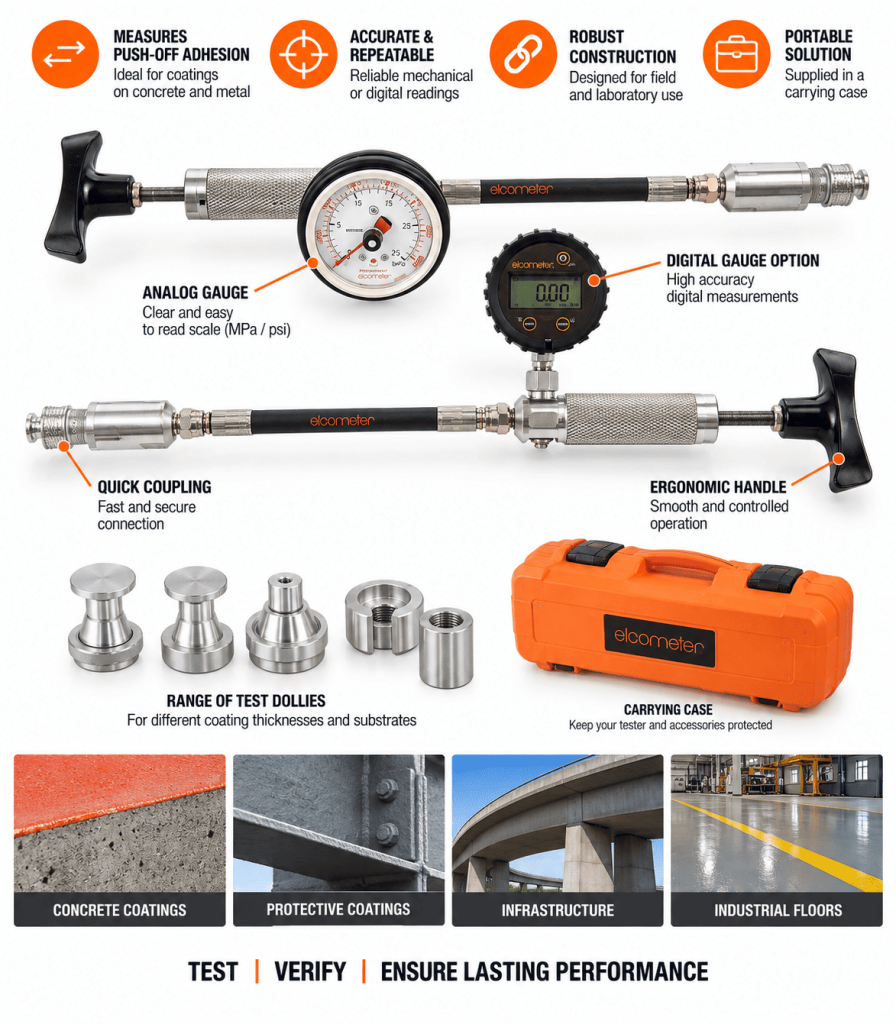

The Elcometer 108 Hydraulic Adhesion Tester is an extremely versatile gauge which can be used for many adhesion requirements.

Adhesion tests can be made on flat or curved (concave and convex) surfaces.

The Elcometer 108 adhesion tester is ideal for coatings on Tanks, Pipelines, etc.

  1. Hand-Powered and portable
  2. Ideal for site work
  3. Reusable stainless steel dollies

Elcometer Digital Adhesion Tester features:

  1. Maximum hold – displays the highest value reached
  2. Backlit display for dark areas
  3. Rubber protective casing
  4. Switchable Metric/Imperial units

The Elcometer 108 adhesion tester can be used with convex and concave dollies, making this the gauge for adhesion of coatings on all pipelines including those with small diameter, tanks and other curved surfaces. There is a wide range of curved dollies available, each designed for a specific range of curvature.

Concave and convex dollies designed to meet specific curvatures are available upon request.

Part Number Description
US 110V
F108—1B F108—1C Elcometer 108/1 Hydraulic Adhesion Tester – Analogue Dial Gauge
F108—2D F108—2C Elcometer 108/2 Hydraulic Adhesion Tester – Digital Gauge
Operating Range Analogue: 0 – 18MPa (0 – 2600psi)
Digital: 0 – 25MPa (0 – 3600psi)
Analogue Instrument Accuracy ±1MPa Metric Scale; 150psi (Imperial Scale)
Digital Instrument Accuracy ±3% or 60psi (whichever is the greater)
Dolly Sizes Outside Diameter 19.4mm (0.76″)
Inside Diameter 3.7mm (0.15″)
Area 284mm² (0.44sq.inch)
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Packing List
  • Elcometer 108
  • ABS carry case
  • 5 flat dollies
  • 5 nylon plugs
  • MC1500 quick curing adhesive
  • dolly cleaning tool
  • heating tongs
  • 2 x LR6 (AA batteries) (Digital gauge only)
  • case
  • operating instructions

Digital Gauge – 110V
1-Free-shipping

Analog Gauge – 110V
1-Free-shipping

The Elcometer 108 Hydraulic Adhesion Tester is an extremely versatile gauge which can be used for many adhesion requirements.

Adhesion tests can be made on flat or curved (concave and convex) surfaces.

The Elcometer 108 adhesion tester is ideal for coatings on Tanks, Pipelines, etc.

  1. Hand-Powered and portable
  2. Ideal for site work
  3. Reusable stainless steel dollies

Elcometer Digital Adhesion Tester features:

  1. Maximum hold – displays the highest value reached
  2. Backlit display for dark areas
  3. Rubber protective casing
  4. Switchable Metric/Imperial units

The Elcometer 108 adhesion tester can be used with convex and concave dollies, making this the gauge for adhesion of coatings on all pipelines including those with small diameter, tanks and other curved surfaces. There is a wide range of curved dollies available, each designed for a specific range of curvature.

Concave and convex dollies designed to meet specific curvatures are available upon request.

Part Number Description
US 110V
F108—1B F108—1C Elcometer 108/1 Hydraulic Adhesion Tester – Analogue Dial Gauge
F108—2D F108—2C Elcometer 108/2 Hydraulic Adhesion Tester – Digital Gauge
Operating Range Analogue: 0 – 18MPa (0 – 2600psi)
Digital: 0 – 25MPa (0 – 3600psi)
Analogue Instrument Accuracy ±1MPa Metric Scale; 150psi (Imperial Scale)
Digital Instrument Accuracy ±3% or 60psi (whichever is the greater)
Dolly Sizes Outside Diameter 19.4mm (0.76″)
Inside Diameter 3.7mm (0.15″)
Area 284mm² (0.44sq.inch)
Certificate available Certificate of Calibration: issued for Fixed Calibration equipment and shows readings and traceability.
Packing List
  • Elcometer 108
  • ABS carry case
  • 5 flat dollies
  • 5 nylon plugs
  • MC1500 quick curing adhesive
  • dolly cleaning tool
  • heating tongs
  • 2 x LR6 (AA batteries) (Digital gauge only)
  • case
  • operating instructions

Digital Gauge – 110V
1-Free-shipping

Analog Gauge – 110V
1-Free-shipping
