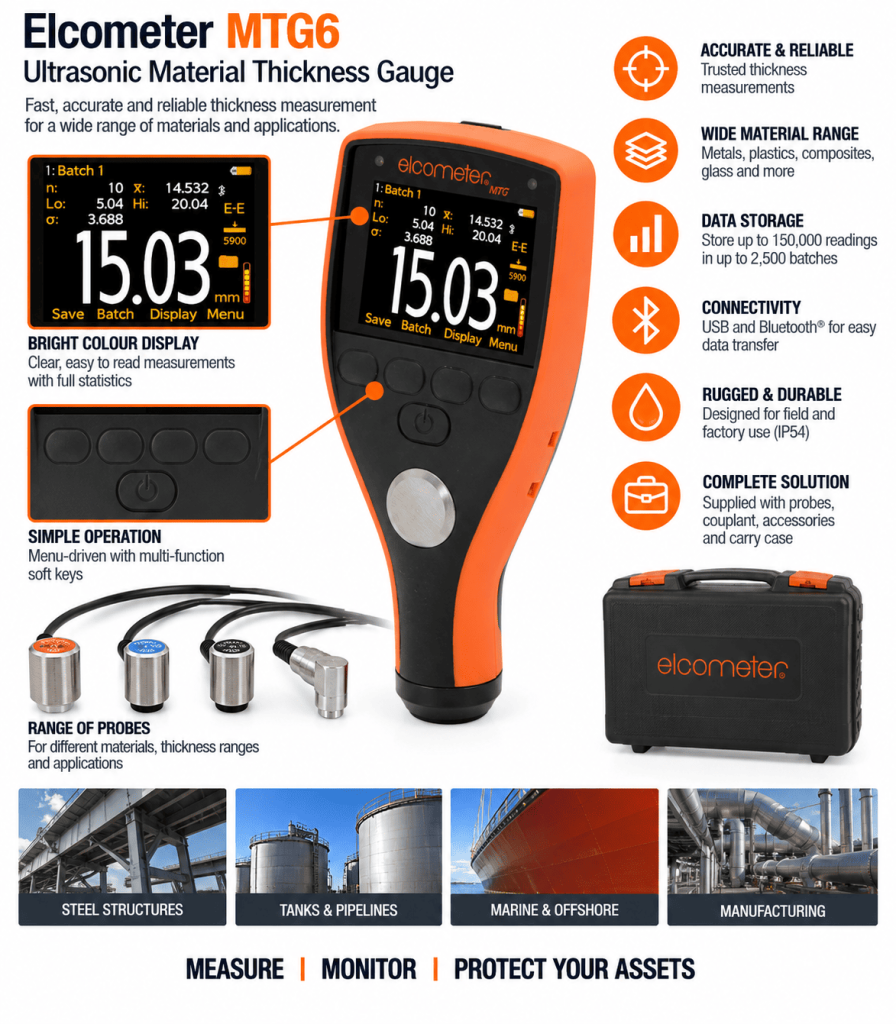

Ultrasonic Thickness Tester MTG6

$2,775.14 CAD$3,490.34 CAD

Support, maintenance, calibration
1 800 463-4363



With a choice of calibration options, measurement modes – including high speed scan mode, display options and datalogging, the MTG6 is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting


MTG 6 MODEL SPECIFICATIONS

MTG6DL
Includes data logging Add to cart
MTG6DL-TXC
Includes 5MHz 1/4″ Potted R/A dual element transducer, couplant, wrist harness, 3 x screen protectors, carry case, plastic transit case, 2 x AA batteries, test certificate, USB cable, ElcoMaster 2.0 software & operating instructions. Add to cart

SELECT YOUR MODEL ON TOP OF THE PAGE TO VIEW THE PRICE


Features Model
Model Number MTG2 MTG4 MTG6 MTG8
Easy to use menu structure in multiple languages
Tough, impact, waterproof and dust resistant equivalent to IP54
Bright colour screen; with permanent backlight
Ambient light sensor, with adjustable brightness
Scratch and solvent resistant display; 2.4″ (6cm) TFT
Large positive feedback buttons
USB power supply; via PC
Gauge software updates1 via ElcoMaster® Software
2 year gauge warranty2
Limits: 40 definable audible & visual pass/fail warnings
Measurement Mode
Pulse Echo (PE)
Echo Echo ThruPaint™ (EE)
Velocity Mode (VM)
Measurement Rate
4, 8, 16Hz 4Hz 4Hz 4, 8, 16Hz3 4, 8, 16Hz3
Thickness Range 4
PE 0.63-500mm (0.025-19.999″)
EE 2.54 – 25.4mm (0.100-1.0”)
Measurement Units
mm or inches
m/s, inch/μs
Repeatability / Stability Indicator
Display Mode
Reading
Selected statistics
Scan thickness bar graph
Run Chart
Readings and Differential
B-Scan cross sectional display
Selectable Reading Resolution
Lo; 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Hi; 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
Statistics
Number of readings,n; Mean average, x ; Standard deviation, σ.
Lowest reading, Lo; Highest reading, Hi
Low / high limit value
Reading Range Value
Nominal Value
Number of readings below the low limit
Number of readings above the high limit
Calibration Options
Zero (using the integral zero disc)
1 – point
2 – point
Material selection; 39 preset materials
Factory; resets to the factory calibration
Velocity (speed of sound)
Known thickness value
Calibration Features
Calibration lock; with optional PIN Lock
Test calibration feature
Calibration memories: 3 programmable memories
Measurement outside calibration warning
Number of readings 1,500 100,000
Number of batches 1 1,000
Sequential batching
Grid batching
Fixed Batch Size Mode; with batch linking
Obstruct entry; add ‘obst’ into grid location
Delete last reading
Date & time stamp
Review, clear & delete batches
Alpha numeric batch names; user definable
Batch review graph
Data Output
USB to PC
Bluetooth® to PC, Android™ & iOS devices
ElcoMaster® software
Transducer Probe Type
Dual Element
Auto transducer recognition
Auto V-path correction

Technical Specification
Elcometer MTG Ultrasonic Material Thickness Gauges

Part Number Gauge Only Complete with 5MHz ¼” right angle dual element transducer Description Certificate
MTG2-TXC Elcometer MTG2 Ultrasonic Material Thickness Gauge Calibration Certificate supplied as standard
MTG4 MTG4-TXC Elcometer MTG4 Ultrasonic Material Thickness Gauge Calibration Certificate supplied as standard
MTG6DL MTG6DL-TXC Elcometer MTG6DL Ultrasonic Material Thickness Gauge Calibration Certificate supplied as standard
MTG8BDL MTG8BDL-TXC Elcometer MTG8BDL Ultrasonic Material Thickness Gauge Calibration Certificate supplied as standard
Model Number MTG2 MTG4 MTG6 MTG8
Measurement Range1
Pulse Echo (PE) 0.63 – 500mm (0.025 – 19.999”) 0.63 – 500mm (0.025 – 19.999”) 0.63 – 500mm (0.025 – 19.999”) 0.63 – 500mm (0.025 – 19.999”)
Echo Echo ThruPaint™ (EE) 2.54 – 25.4mm (0.100-1.0”) 2.54 – 25.4mm (0.100-1.0”) 2.54 – 20.00mm (0.100-0.787”)
Velocity Mode (VM) 1,250-10,000m/s (0.0492 – 0.3937in/μs) 1,250-10,000m/s (0.0492 – 0.3937in/μs) 1,250-10,000m/s (0.0492 – 0.3937in/μs)
Measurement Accuracy2
Pulse Echo (PE) ±0.1mm (0.63-19.99mm) ±0.5% (20.00-500.00mm) ±0.1mm (0.63-19.99mm) ±0.5% (20.00-500.00mm) ±0.05mm (0.63-9.99mm) ±0.5% (10.00-500.00mm) ±0.004” (0.025-0.393”) ±0.5% (0.394-20.00”) ±0.05mm (0.63-9.99mm) ±0.5% (10.00-500.00mm) ±0.004” (0.025-0.393”) ±0.5% (0.394-20.00”)
Echo Echo ThruPaint™ (EE) ±0.1mm (2.54-25.4mm) ±0.05mm (2.54-9.99mm) ±0.5% (10.00-20.00mm) ±0.004” (0.100-0.393”) ±0.5% (0.394-0.787”) ±0.05mm (2.54-9.99mm) ±0.5% (10.00-20.00mm) ±0.004” (0.100-0.393”) ±0.5% (0.394-0.787”)
Operating Temperature -10 to 50°C (14 to 122°F)
Power Supply 2 x AA batteries
Battery Life3 Alkaline: 15 hours Lithium: 28 hours
Gauge Weight 210g (7.4oz) – including batteries, without transducer
Gauge Dimensions 145 x 73 x 37mm (5.7 x 2.84 x 1.46”), without transducer
Packing List Elcometer MTG2 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer, ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions, test certificate & 2 year warranty extension card Elcometer MTG4 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG4-TXC only), ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions, test certificate & 2 year warranty extension card Elcometer MTG6 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG6DL-TXC only), ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, ElcoMaster® software CD & USB cable Elcometer MTG8 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG8BDL-TXC only), ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, ElcoMaster® software CD & USB cable

As well as all the features of the MTG2 & MTG4, the MTG6 has additional calibration options; 2-Point, Velocity and known Thickness Value.

The MTG6 offers Velocity Mode (VM) which is ideal for determining the homogeneity of a material/alloy and the correct velocity of a material for calibration.

Using Scan Mode, readings can be taken at a rate of 16Hz (16 readings per second) over a large surface area. When the transducer is lifted off the surface, the average, lowest and highest thickness value is displayed making scan mode ideal for checking a sample’s overall uniformity.

With a user definable display, users can choose to view readings, statistical information, bar graph – an analogue representation of the current reading together with the highest (Hi) , lowest (Lo); and average (x), reading or a run chart; a trend graph of the last 20 readings.

The MTG6 has a single batch gauge memory and can store up to 1,500 readings. Compatible with both ElcoMaster™ and ElcoMaster™ Mobile Apps, readings can be downloaded via USB or Bluetooth® to PC, iOS or Android™ devices for further analysis and reporting.

View Technical Specifications
