The Elcometer 1542 is ideal for measuring the cross-hatch adhesion of coatings up to 250µm (9.8mils) on flat surfaces and test panels
Measure on large or small panels by quickly changing the position of the guide wheel using the hexagonal wrench provided. Each cross hatch cutter wheel consists of 8 cutting faces. When one face becomes worn, rotate the cutting wheel to the next face.
The Elcometer 1542 is available with three different cutter spacings:
- 1mm spacing – for coating thickness 0 – 60µm (0 – 2.4mils)
- 2mm spacing – for coating thickness 50 – 125µm (2.0 – 5.0mils)
- 3mm spacing – for coating thickness 121 – 250µm (4.8 – 9.8mils)
The Elcometer 1542 cross hatch cutter is available on its own (Basic Kit) or as a Full Kit which includes a brush, magnifier & ISO or ASTM adhesive tape. There are also Advanced Kits which include all three (1, 2 & 3mm) cross-hatch adhesion testers, together with either ISO or ASTM D3359 Cross Hatch Adhesion Test Tape.
- Basic Kit – 6 x 1mm | Add to cart
- Full Kit / ASTM – 6 x 1mm | Add to cart
- Full Kit / ASTM – 6 x 1mm – Certified | Add to cart
- Full Kit / ISO – 6 x 1mm | Add to cart
- Full Kit / ISO – 6 x 1mm – Certified | Add to cart
- Basic Kit – 6 x 1mm – Certified | Add to cart
- Basic Kit – 6 x 2mm | Add to cart
- Full Kit / ASTM – 6 x 2mm Certified | Add to cart
- Full Kit / ASTM – 6 x 2mm | Add to cart
- Full Kit / ISO – 6 x 2mm | Add to cart
- Full Kit / ISO – 6 x 2mm – Certified | Add to cart
- Basic Kit – 6 x 2mm – Certified | Add to cart
- Basic Kit – 6 x 3mm | Add to cart
- Full Kit / ISO – 6 x 3mm | Add to cart
- Full Kit / ISO – 6 x 3mm – Certified | Add to cart
- Basic Kit – 6 x 3mm – Certified | Add to cart
Basic Kit: 1 x Elcometer 1542 Cross Hatch Tester1, cutter angle adjustment tool, hexagonal wrench, transit case & user guide

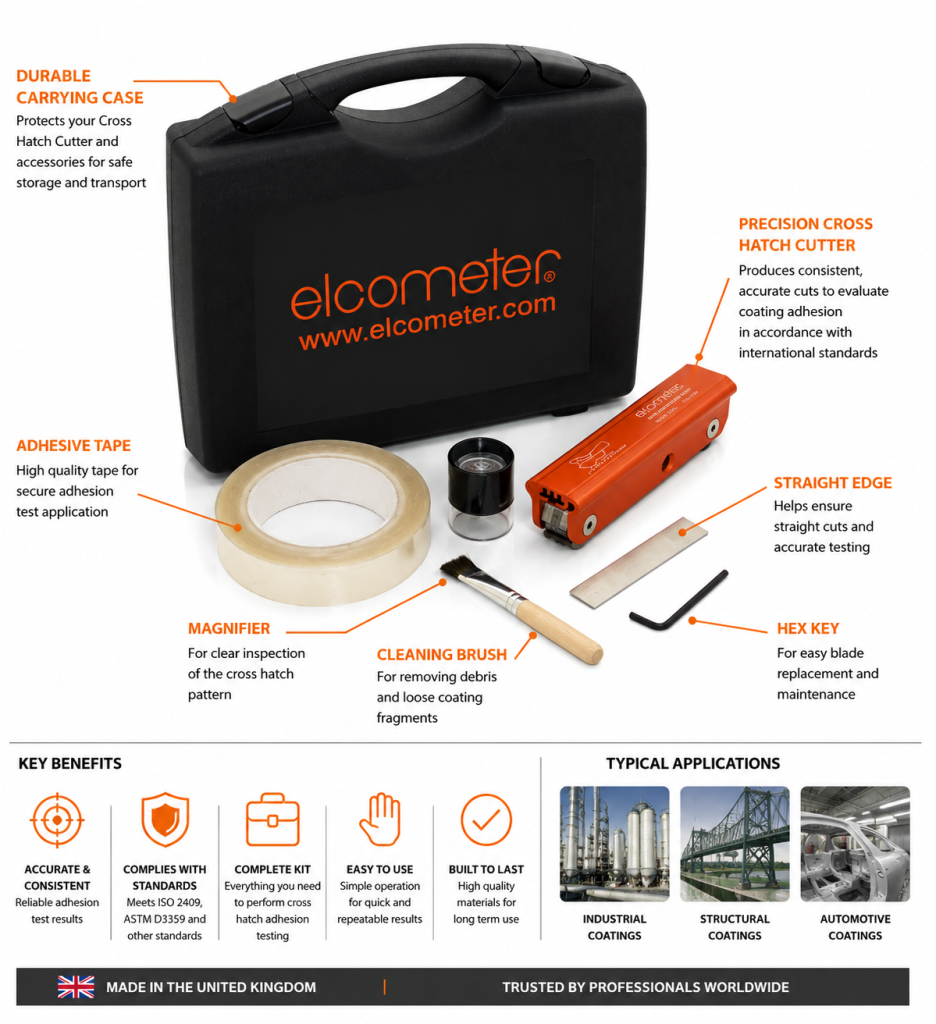

Full Kit: Basic Kit + brush, magnifier (x10) & ISO or ASTM adhesive tape
Advanced Kit: 3 x Elcometer 1542 Cross Hatch Testers (1, 2 & 3mm), cutter angle adjustment tool, hexagonal wrench, brush, magnifier (x10), ISO or ASTM adhesive tape, transit case & user guide
Product Accessories
| Part Number | Description | Methods | Certificate | ||
| ISO | ASTM | AS | |||
| KT1542P001 | 6 x 1mm Cross Hatch Cutter Wheel | • | • | ο | |
| KT1542P002 | 6 x 2mm Cross Hatch Cutter Wheel | • | • | • | ο |
| KT1542P003 | 6 x 3mm Cross Hatch Cutter Wheel | • | ο | ||
| Accessories | |||||
| K0001539M001 | Adhesive Tape (1 roll) ASTM D 3359 | ||||
| K0001539M002 | Adhesive Tape (1 roll) ISO 2409 | ||||
| T9998894- | Adhesive Tape (2 rolls) ASTM D 3359 | ||||
| T9999358- | Adhesive Tape (2 rolls) ISO 2409 | ||||
| KT1542N002 | Magnifier (x10) | ||||
| T99913357 | Cross Hatch Brush | ||||
Download Data Sheet
Download Instruction Manual
Standards
Can be used in accordance with:
AS 3894.9, AS 1580.408.4, ASTM D 3359-B, BS 3900-E6, ECCA T6, EN 13523-6, ISO 2409, ISO 16276-2, JIS K 5600-5-6, NF T30-038
